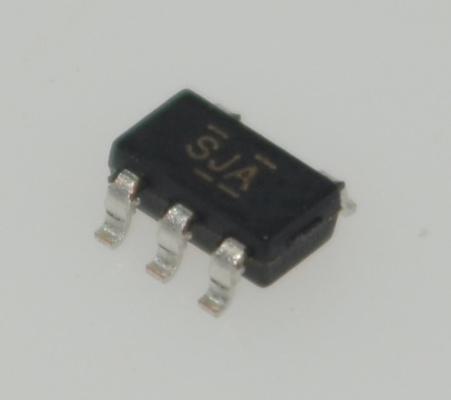

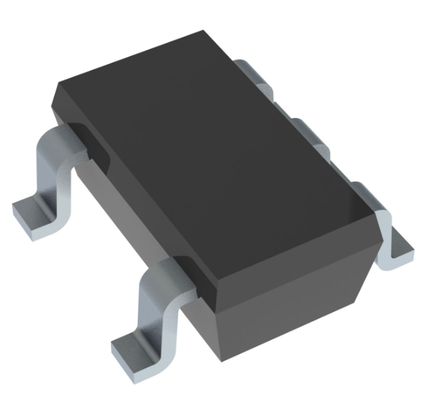

TPS70633DBVR LDO 2.7-10V Input 150mA Output Ultra-Low 20μVRMS Noise High 70dB PSRR Fast 50μs Start-Up Low 30μA IQ Enable Pin SOT-23-5 Package

TPS70633DBVR LDO 2.7-10V Input 150mA Output Ultra-Low 20μVRMS Noise High 70dB PSRR Fast 50μs Start-Up Low 30μA IQ Enable Pin SOT-23-5 Package

Features

• Input Voltage Range: 2.7 V to 6.5 V 1

• Ultralow IQ: 1 μA

• Reverse Current Protection

• LowISHDN: 150 nA

• Supports 200-mA Peak Output

• LowDropout: 245 mV at 50 mA

• 2%Accuracy Over Temperature

• Available in Fixed-Output Voltages: 1.2 V to 5 V

• Thermal Shutdown and Overcurrent Protection

• Packages: SOT-23-5, WSON-6

Applications

• Smartphones and Tablets

• Portable and Battery-Powered Applications

• Camera Modules

• Set-Top Boxes

• Wearables

• Solid State Drives

• Medical Equipment

Description The TPS706 series of linear voltage regulators are ultralow, quiescent current devices designed for power-sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermal shutdown, current-limit,and reverse-current  protection for added safety.

These regulators can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical.

The TPS706 series is available in WSON-6 and SOT 23-5 packages.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
