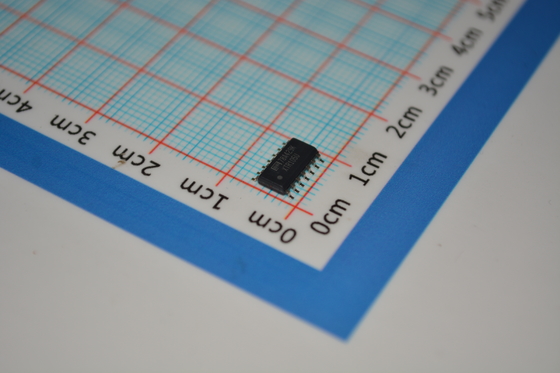

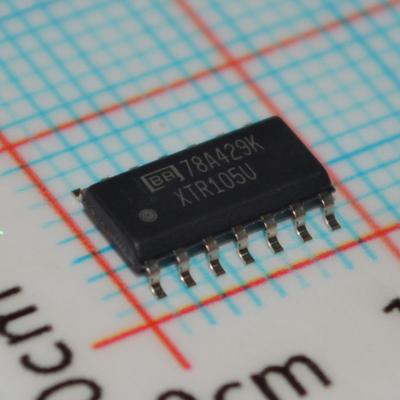

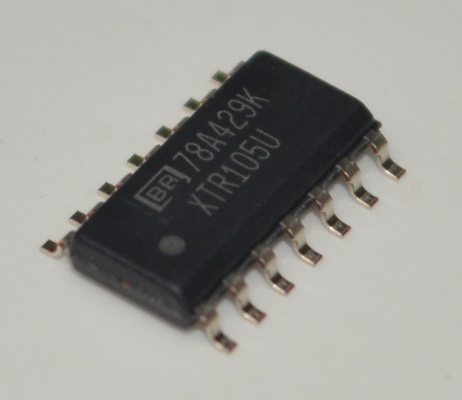

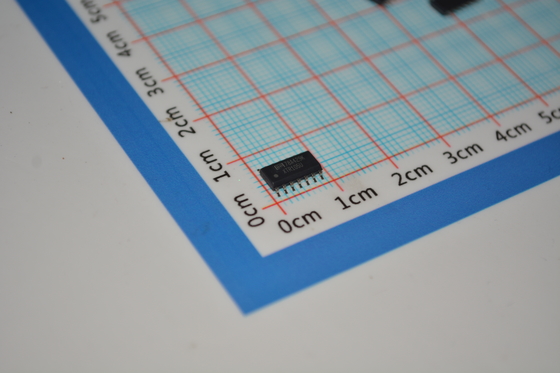

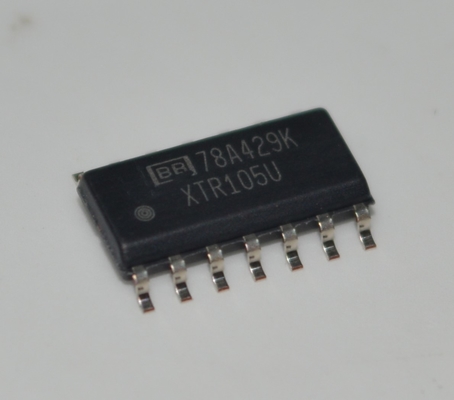

XTR105U Precision 4-20mA Current Loop Transmitter with RTD Sensor Excitation Linearization, 2-Wire Operation 5V Regulator 60V Compliance 0.1% Accuracy and Wide 7.5-36V Supply in SO-14 Package

XTR105U Precision 4-20mA Current Loop Transmitter with RTD Sensor Excitation Linearization, 2-Wire Operation 5V Regulator 60V Compliance 0.1% Accuracy and Wide 7.5-36V Supply in SO-14 Package

Features

• Low unadjusted error

• Two precision current sources: 800µA each

• Linearization

• 2-wire or 3-wire RTD operation

• Low offset drift: 0.4µV/°C

• Low output current noise: 30nAPP

• High PSR: 110dB minimum

• High CMR: 86dB minimum

• Wide supply range: 7.5V to 36V

• Packages: DIP-14 and SO-14

Applications

• Field transmitter and sensor

• Factory automation

• Compatible with HART modem

• Temperature and pressure transducers

• Industrial process control

• SCADA remote data acquisition

• 2-wire, 4-20mA current loop

• Voltage-to-current amplifier

Description

The XTR105 is a monolithic 4mA-to-20mA, 2-wire current transmitter with two precision current sources. This device provides complete current excitation for platinum RTD temperature sensors and bridges, instrumentation amplifiers, and current output circuitry on a single integrated circuit.

Versatile linearization circuitry provides a 2nd-order correction to the RTD, typically achieving a 40:1 improvement in linearity.

Instrumentation amplifier gain can be configured for a wide range of temperature or pressure measurements. Total unadjusted error of the complete current transmitter is low enough to permit use without adjustment in many applications. This includes zero output current drift, span drift, and nonlinearity. The XTR105 operates on loop power-supply voltages down to 7.5V.

The XTR105 is available in DIP-14 and SO-14 surface-mount packages and is specified for the industrial temperature range of –40°C to +85°C.

INFORMATION

Drawing
