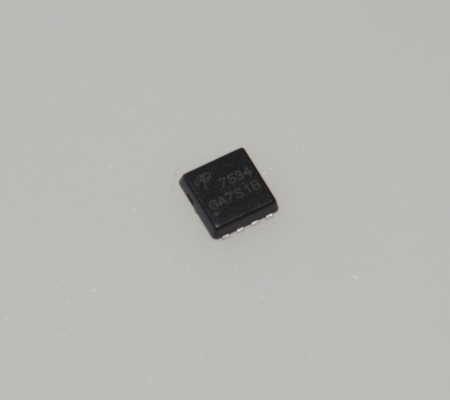

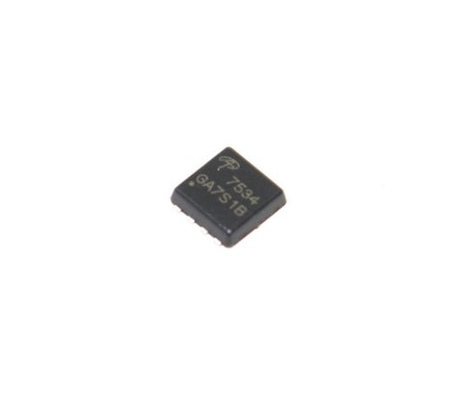

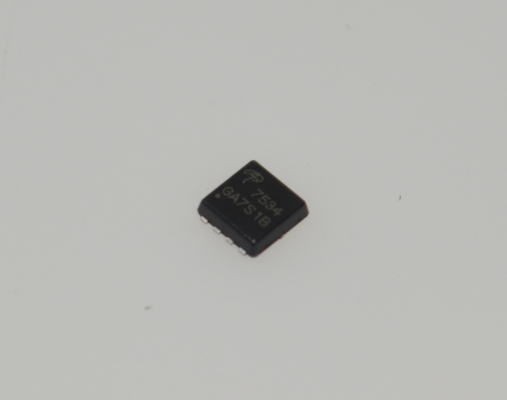

AON7534 30V N-Channel MOSFET 10.5mΩ Rds(on) 60A Continuous DFN5x6-8L -55°C to +175°C AEC-Q101

AON7534 30V N-Channel MOSFET 10.5mΩ Rds(on) 60A Continuous DFN5x6-8L -55°C to +175°C AEC-Q101

General Description

• Trench Power MOSFET technology

• Very Low RDS(on) at 4.5VGS

• Low Gate Charge

• High Current Capability

• RoHS and Halogen-Free Compliant

Application

• DC/DC Converters in Computing, Servers, and POL

• Isolated DC/DC Converters in Telecom and Industrial

Features

High-Efficiency Power switching

  30V Drain-Source Voltage: ldeal for 12V/24V power systems

  60A Continuous Current (100A pulsed): Supports high-power load driving

Ultra-Low Conduction Loss
  Rds(on)= 10.5m2 (Vgs=10V): Minimizes power dissipation, boosts efficiency

High-Frequency switching Optimization
  Low Gate charge (Qg=38nC): Enables high-frequency PWM control (up to 1MHz)

  Fast switching: Rise/Fall time <20ns

Reliability & Protection
  100% Avalanche Tested: Ensures stability under extreme conditions

AEC-Q101 Certified: Meets automotive-grade reliability standards

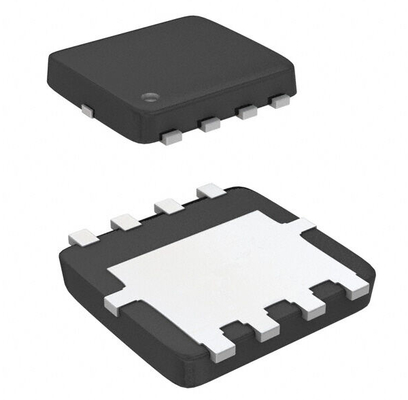

Leading Power Density: DFN5x6-8L package is 80% smaller than TO-220

Superior Efficiency: 30% lower conduction loss vs. 15mQ MOSFETS

Wide Temperature Range: -55'C to +175'C for harsh environments

INFORMATION

Drawing
